Almacenamiento de energía apilado

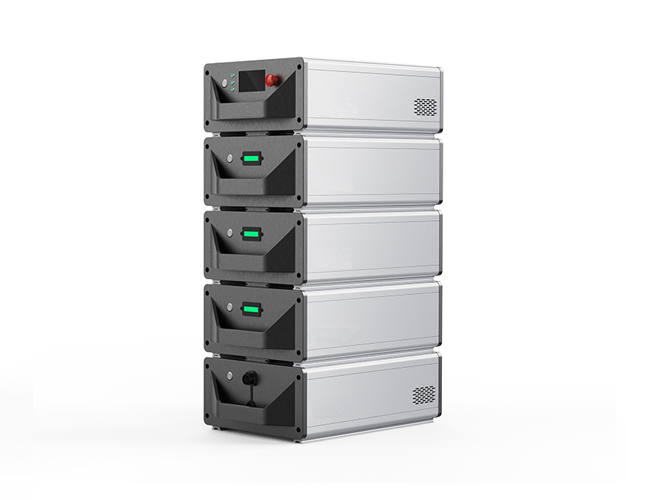

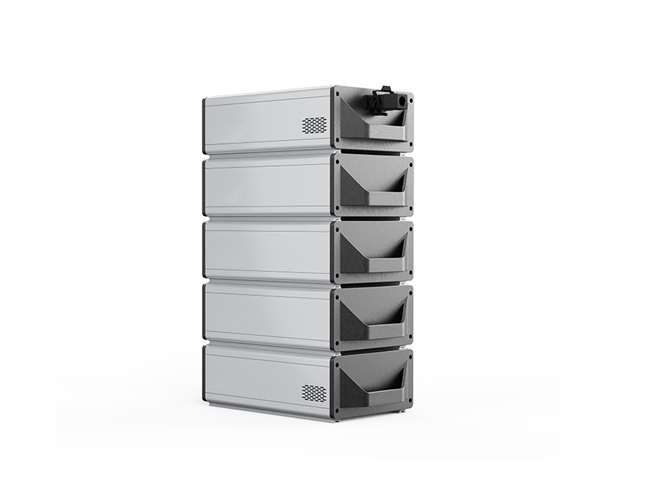

TP-DW-12KWh-20KW

•Modular design and flexible expansion

•High energy density and efficient performance

•Intelligent management system

•Safety and reliability

•Space saving and easy to install

•Multiple application scenarios

•Environmental protection and economy

•Compatibility and versatility

Product Introduction

Stacked energy storage products are modular and scalable energy storage solutions widely used in household, commercial, and industrial scenarios. Its core feature is to achieve flexible capacity expansion by stacking multiple standardized energy storage modules, while possessing high energy density, intelligent management, and safety and reliability.

Application

: Home energy storage

: Industrial energy storage

: Peak shaving and frequency regulation of power system

: Data center and business district

: Cold chain logistics and ports

: 5G base stations and communication facilities

: Electric vehicle charging

: Offshore platforms and islanded power grids

: Smart home and RV

: Modular design and flexible expansion
Stacked energy storage products adopt modular design, allowing users to flexibly choose the number of modules according to their needs and gradually expand energy storage capacity. For example, the capacity of a single module is usually 5kWh, which can be expanded to 100kWh through stacking.

: High energy density and efficient performance
Adopting lithium iron phosphate (LFP) batteries, it has high energy density, long cycle life (such as 6000 cycles), and high safety.

: Intelligent management system
Equipped with advanced battery management system (BMS), supporting real-time monitoring, fault warning, remote control, and multiple charging modes (such as mains power and photovoltaic complementary).

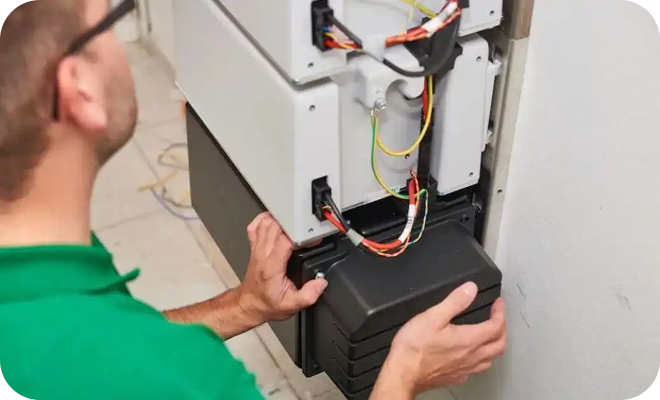

: Space saving and easy to install
Stacked design saves space and supports wall mounted or floor mounted installation, which can be completed by 1-2 people.

Parameter

Project: Product ModelTP-DW-10KWh-5KW

Battery parameters

Charging voltageAC220V

Charging standardCCS1/CCS2/CHAdeMO/GBT//Tesla

Battery typeLiFePO4

Nominal capacity10KWh

Charging rate0.5C

Discharge rate0.5C

Battery voltage48V

Rated current/

Coolingforced air cooling

Protection levelIP54

Insulation methodDirect detection

Discharge parameters

Rated power
20 KW

Output voltageDC200~530V

Output current0-50A

Charge modeFully automatic, fixed power, fixed quantity, fixed time

Safety protection Overvoltage, overcurrent, low voltage ESD、 Lightning protection, overcharging, overload, fire, overheating, waterproofing, leakage and chip protection

Network mode4G module

Charging gunCCS1/CCS2/CHAdeMO/GBT//Tesla

Cable length5 meters (customizable)

HMI7-inch touch screen

LanguageEnglish (customizable)

Photovoltaic charging

PV charging mode/

Maximum PV input power/

MPPT tracking range/

Optimum voltage/

Maximum PV input voltage/

The optimal value of PV charging current/

Maximum AC charging current/

Maximum charging current/

Equipment parameters

Dimensions L * W * H/mm2248*1126*1021

Weight/KG1390KG

Working temperature/°C-10°C-60°C

Altitude/m2000m

Noise/dB≤60dB

Humidity/RH5％～95％RH, non condensing

AuthenticationCE
